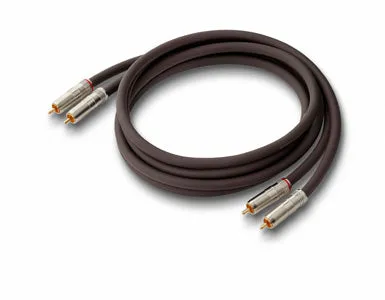

Accuphase ASL Type SR Series RCA Phono Plug (Pair)

Includes gold-plated phono plugs with low contact resistance and superior corrosion resistance.

By using an 8-core multi-hybrid construction with 2 sets of 4 different types of wires – including class 7N high-grade copper wire – the SR Series delivers extremely pure transmission with reduced loss at the range limits.

A high-density braid and double-layer structure with aluminum foil tape over the 192 φ 0.1 mm annealed copper wires reduces capacitance and creates excellent shielding results.

Specs

 Phono plug
Configuration    8-core multi-hybrid construction
Insulator    Polyethylene
Exterior insulation material    PVC Dark brown φ8.7
Central conductor    Class 7N high-grade copper wire
3 types of copper wire
Shielded conductor    Annealed copper wire × 192
Conductor resistance (mΩ/m)    9
Capacitance (pF/m)    187.5
Inductance (μH/m)    0.51
